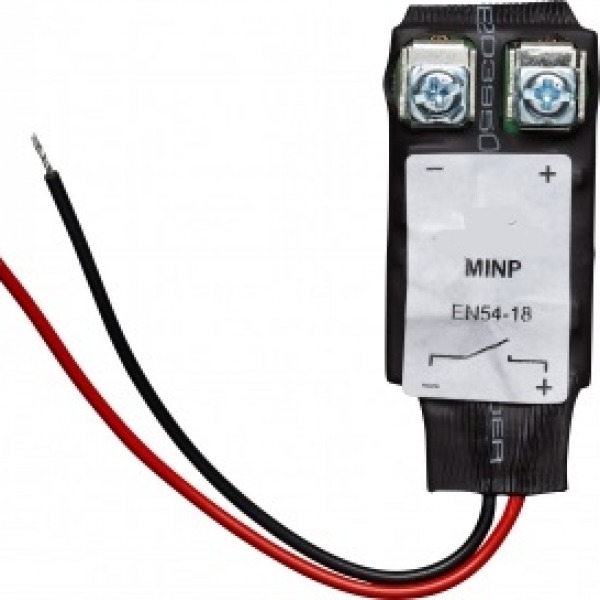

MINP is an input module. The module monitors this platform and communicates panelab information about its status (open or closed). MINP is required to be placed in the mounting boxes of the devices. MINP module complies with EN54-18 standard.
Operating voltage 15 ÷ 32 VDC
Acceptable ripple at supply voltage 3.0Vpp @ 27Vdc
Maximum power consumption 100μA @ 27Vdc
Maximum cable cross section 2.5mm²
Relative humidity resistance ≤93% @ + 40 ° C
Dimensions 43x25mm
Weight 12g
The price does not include taxes and freight.
